libreoffice is great for drawing out networks

  1. is free
  2. and has good icons

Best used with the libreoffice-draw package and the VRT Network Equipment Gallery extension for a small set of high quality Network icons images optimized for libre.

There were no sheetmetal cutout frames or GPU icons, unfortunately.

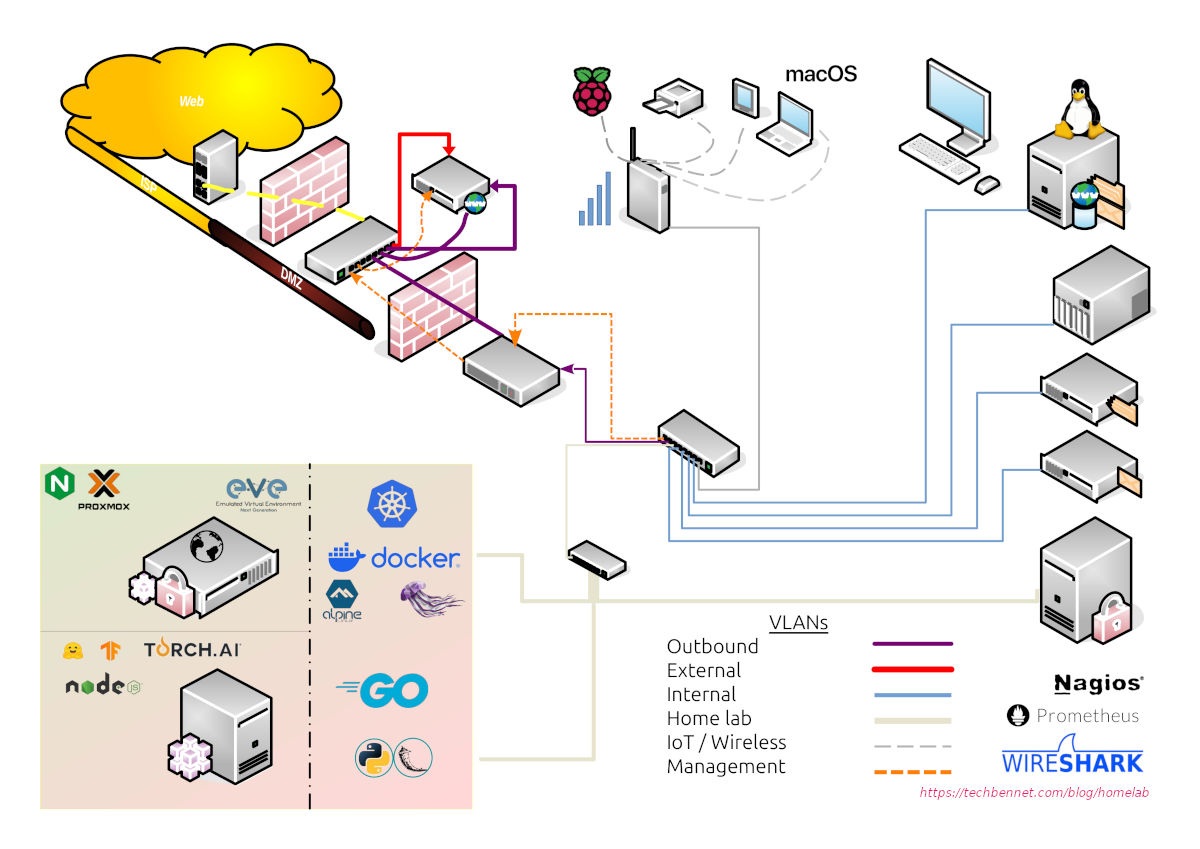

homelab-libre-draw-v2

to install:

sudo apt update
sudo apt install libreoffice
sudo apt install libreoffice-draw

https://extensions.libreoffice.org/en/extensions/show/vrt-network-equipment)is where you can get the extension, or just google libreoffice network icons and you will find it.

Super easy install: just double click the extension and it will open with libre. Open the draw app and head to Gallery, scroll to the bottom to see the extension package.
